SprayQuantAI®

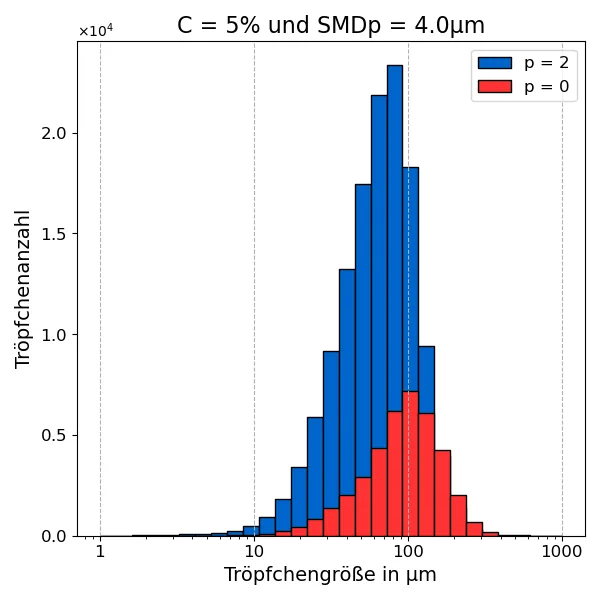

SprayQuantAI® characterizes individual droplets in sprays and flows. Depending on the configuration, it measures droplet size, velocity and number using classical or AI-based calculation.
Explore SprayQuantAI®SprayQuantAI® · ParticleTensorAI® · SprayConeAI®
AI-Based Optical Measurement Systems for Sprays, Droplets and Particles
ai-quanton develops optical measurement systems for characterizing droplets, particles and sprays. Our platforms combine optical measurement technology with AI-based analysis for research and process monitoring in automotive applications.
Made in GermanyInvented, developed and built in Germany

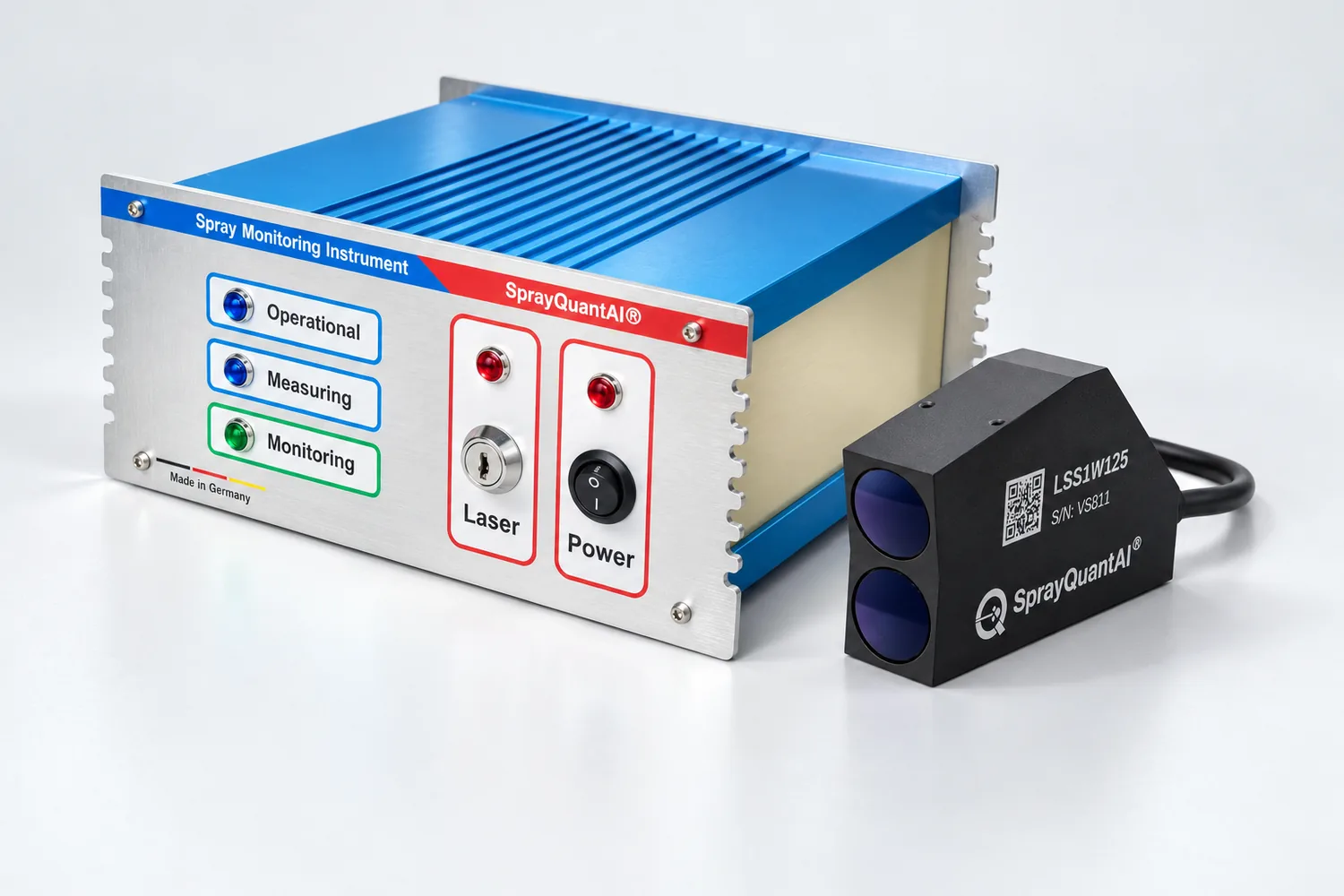

SQA1LSS1 + ZEON
Our technolgy is protected by four patent applications and three registered trademarks.
Partners and Collaborations
Partners and Collaborations →01 — Products
Our Technology Platforms

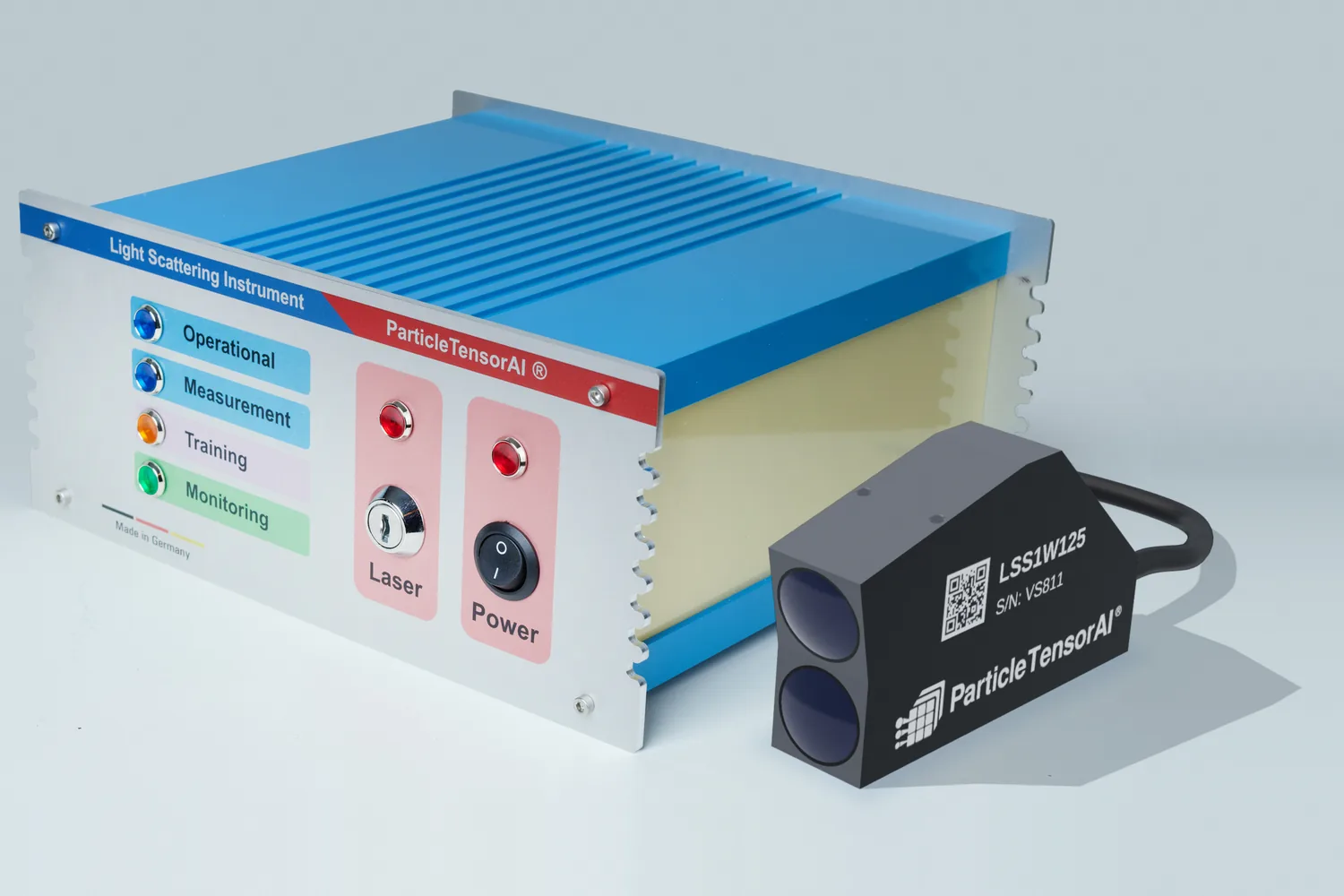

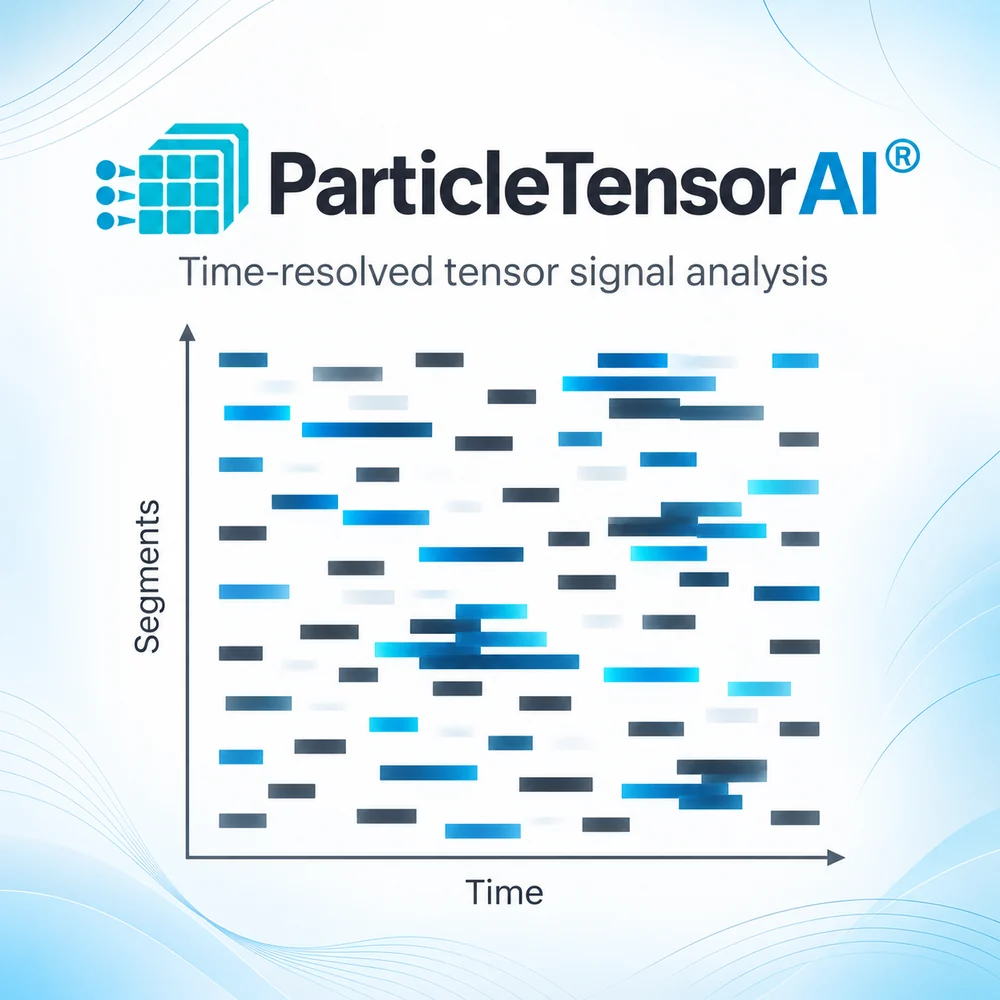

ParticleTensorAI®

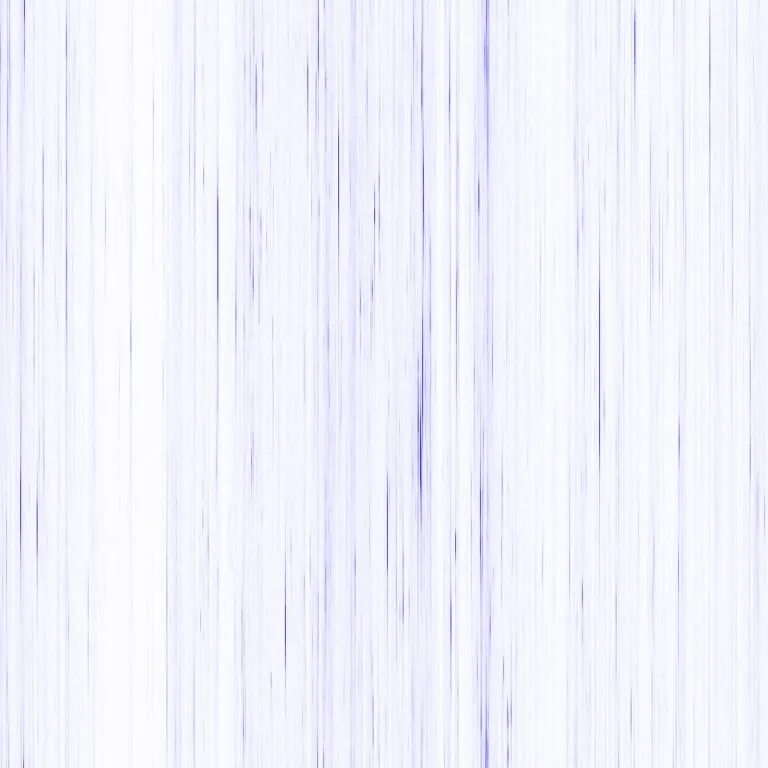

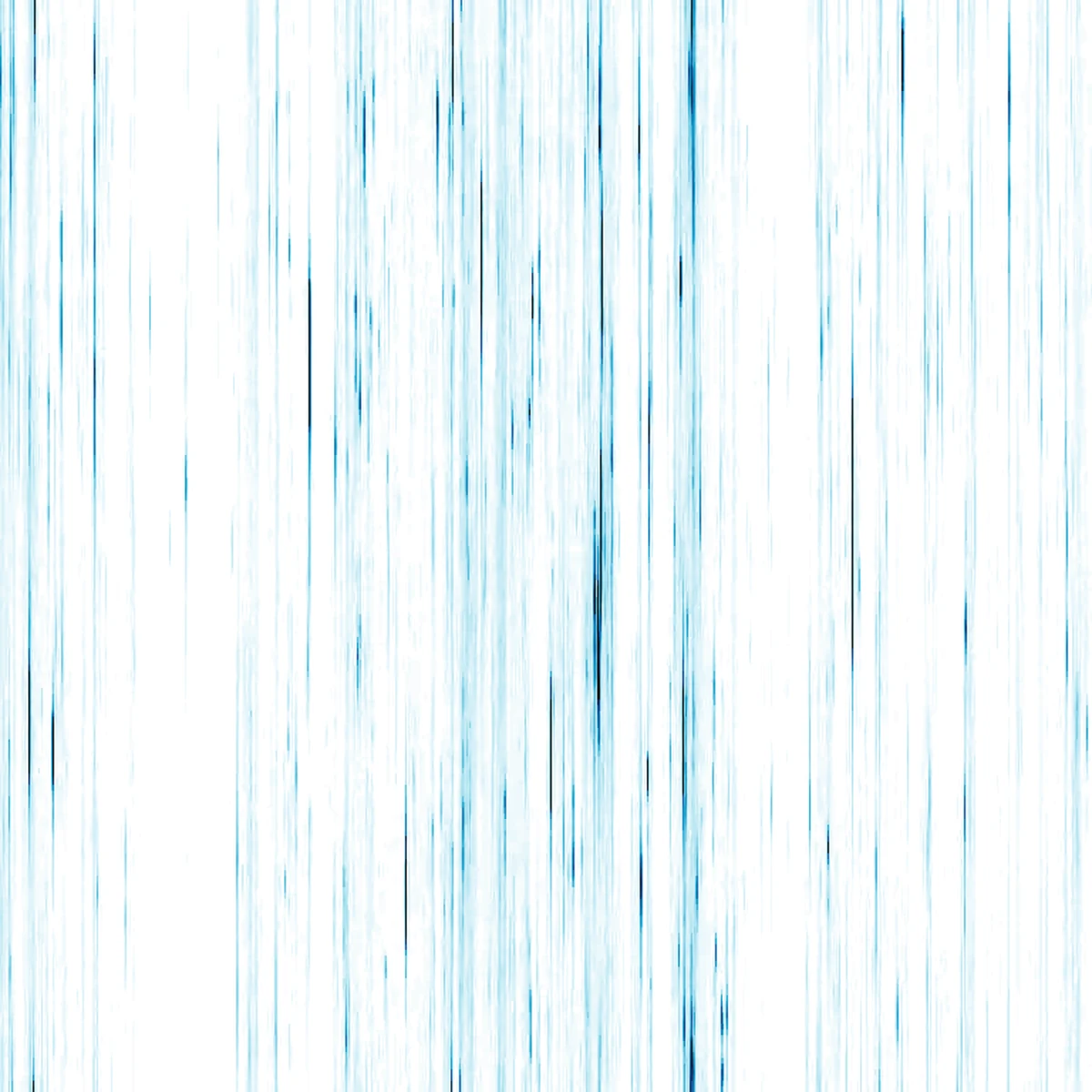

ParticleTensorAI® analyses time-resolved light-scattering signal sequences as multidimensional data. AI models evaluate patterns in these data for spray or droplets characterization.
Explore ParticleTensorAI®

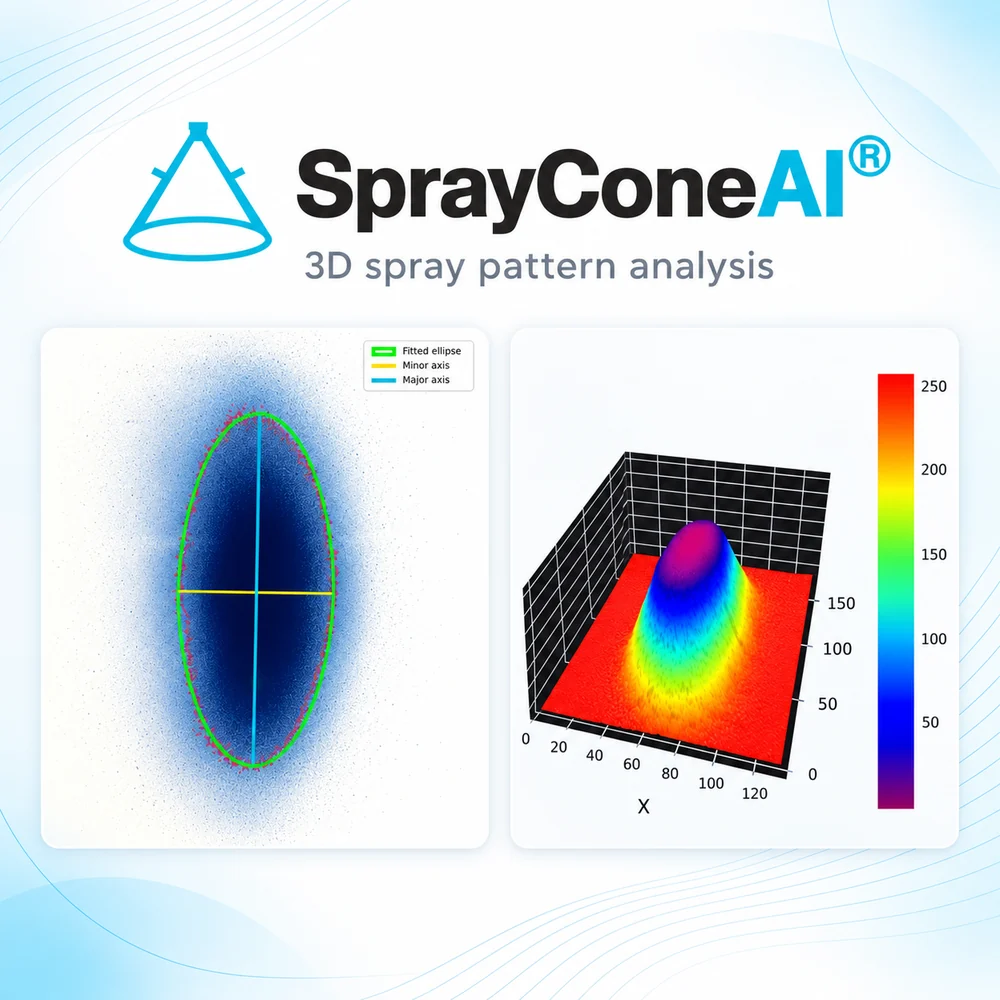

SprayConeAI®
SprayConeAI® is a web-based tool for analysing spray cones and spray patterns from images captured with a smartphone, tablet or computer.
Explore SprayConeAI®02 — System Configurations
System Comparison: SQA1, SQA2, PTA1, PTA2 and PTA4
The table compares the hardware, evaluation methods and available signal information of all five configurations. Additional detector channels extend the information available for analysis; they do not by themselves define the final measurement outputs.

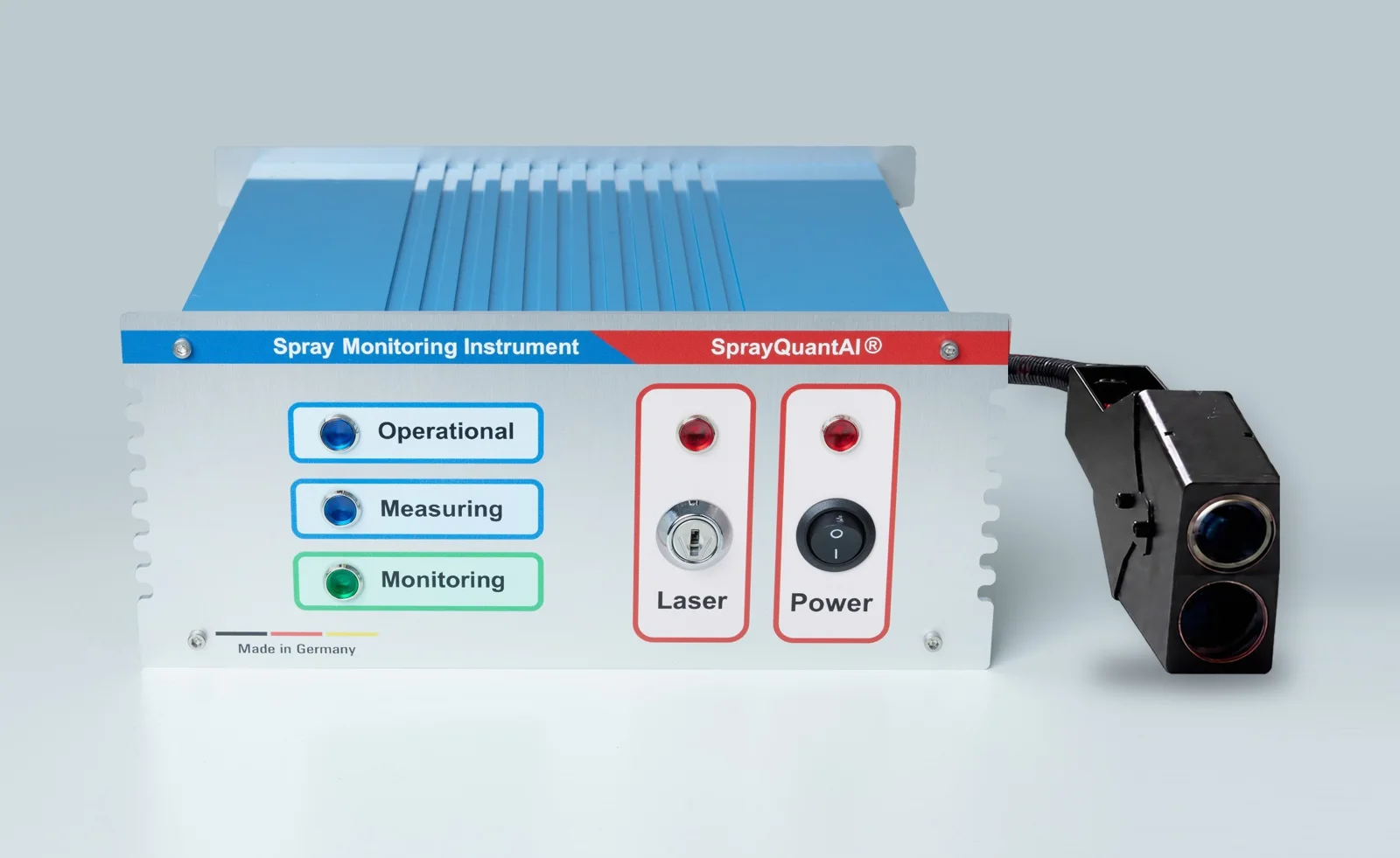

SQA1
SprayQuantAI®- Detector channels
- 1
- Probe + control unit
- LSS1 + ZEON
- Evaluation method
- Classical or AI-based evaluation of individual droplet events

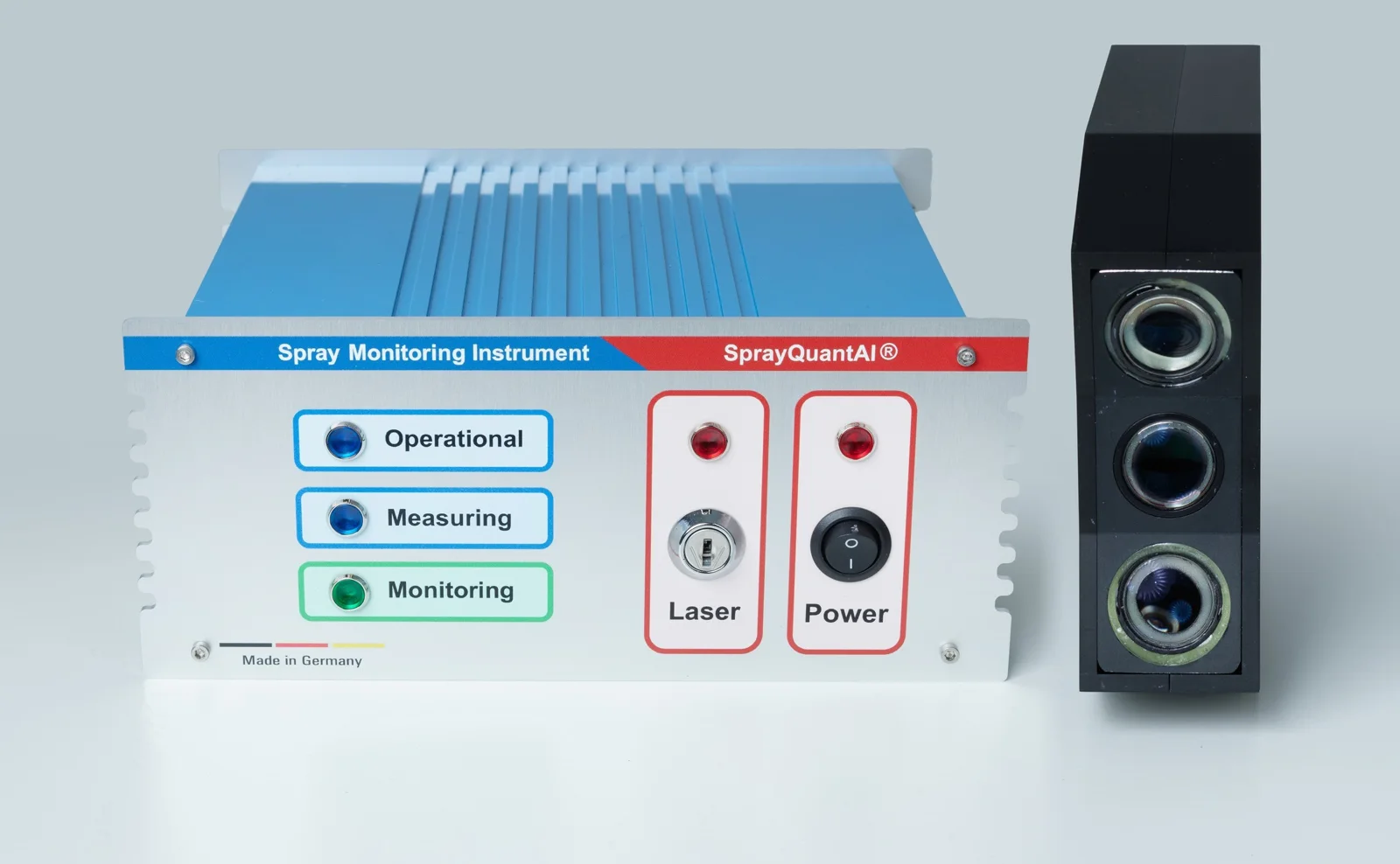

SQA2
SprayQuantAI®- Detector channels
- 2
- Probe + control unit
- LSS2 + IMEA
- Evaluation method
- Classical or AI-based evaluation of individual droplet events

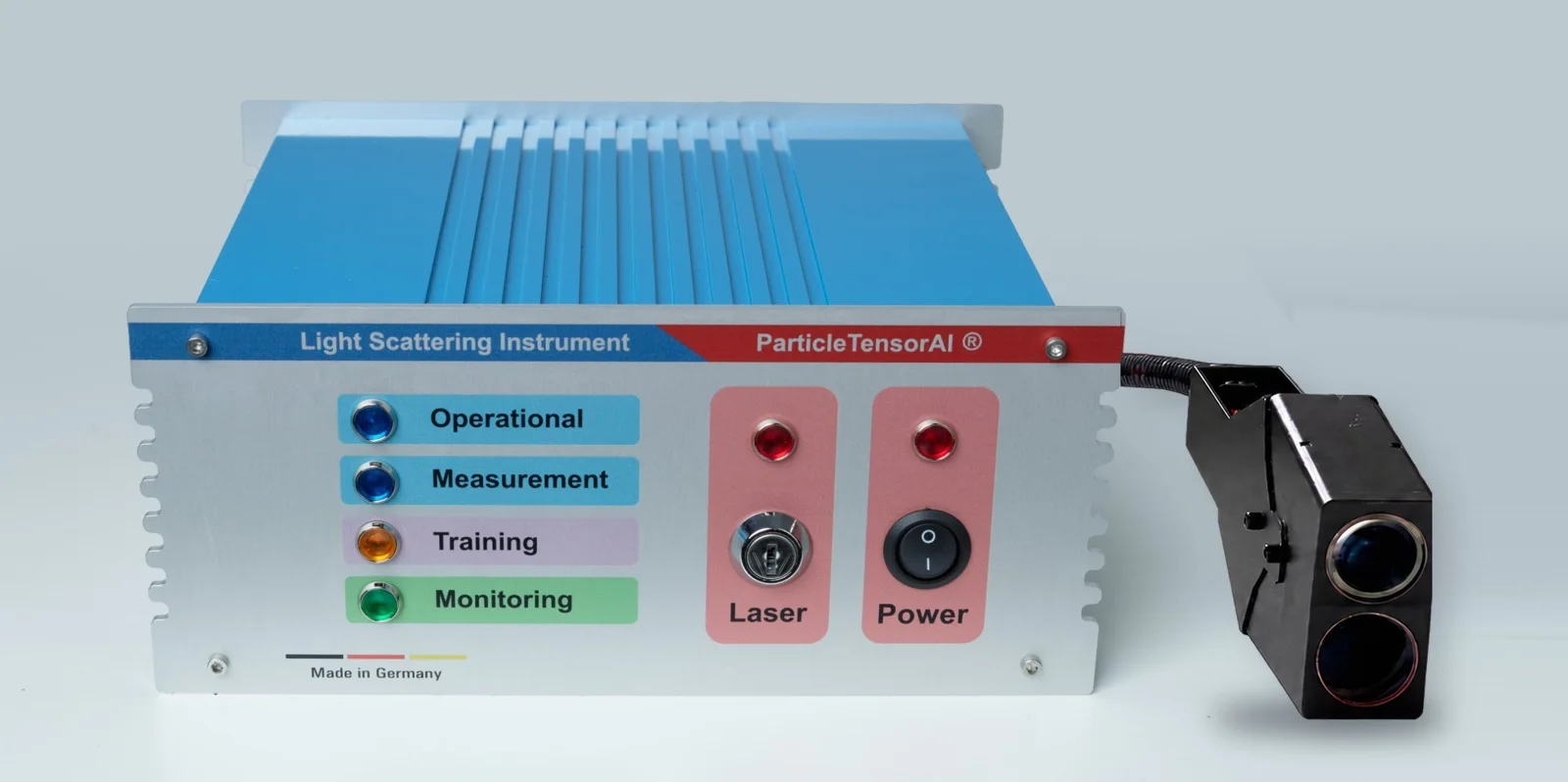

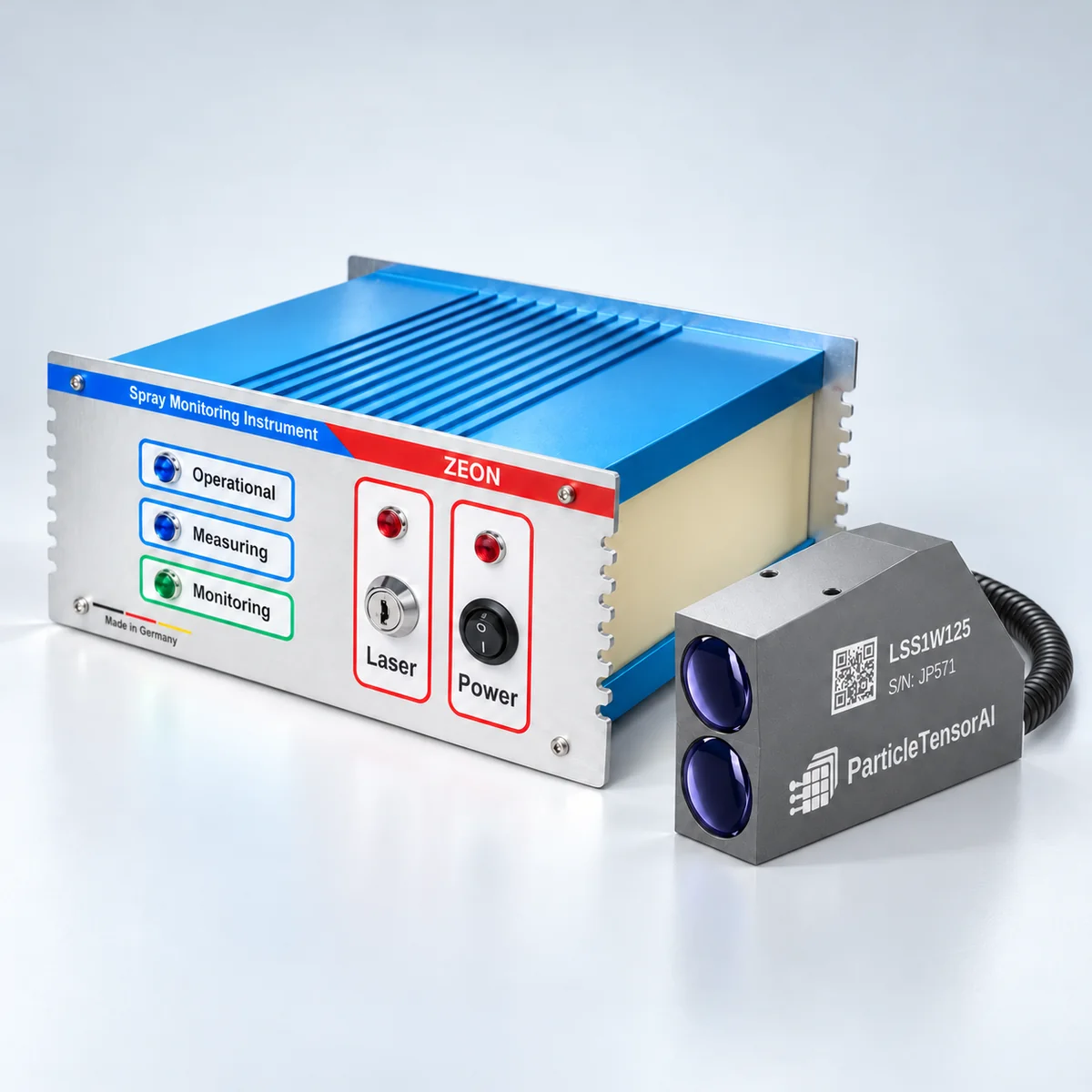

PTA1
ParticleTensorAI®- Detector channels
- 1
- Probe + control unit
- LSS1 + ZEON
- Evaluation method
- AI-based tensor analysis

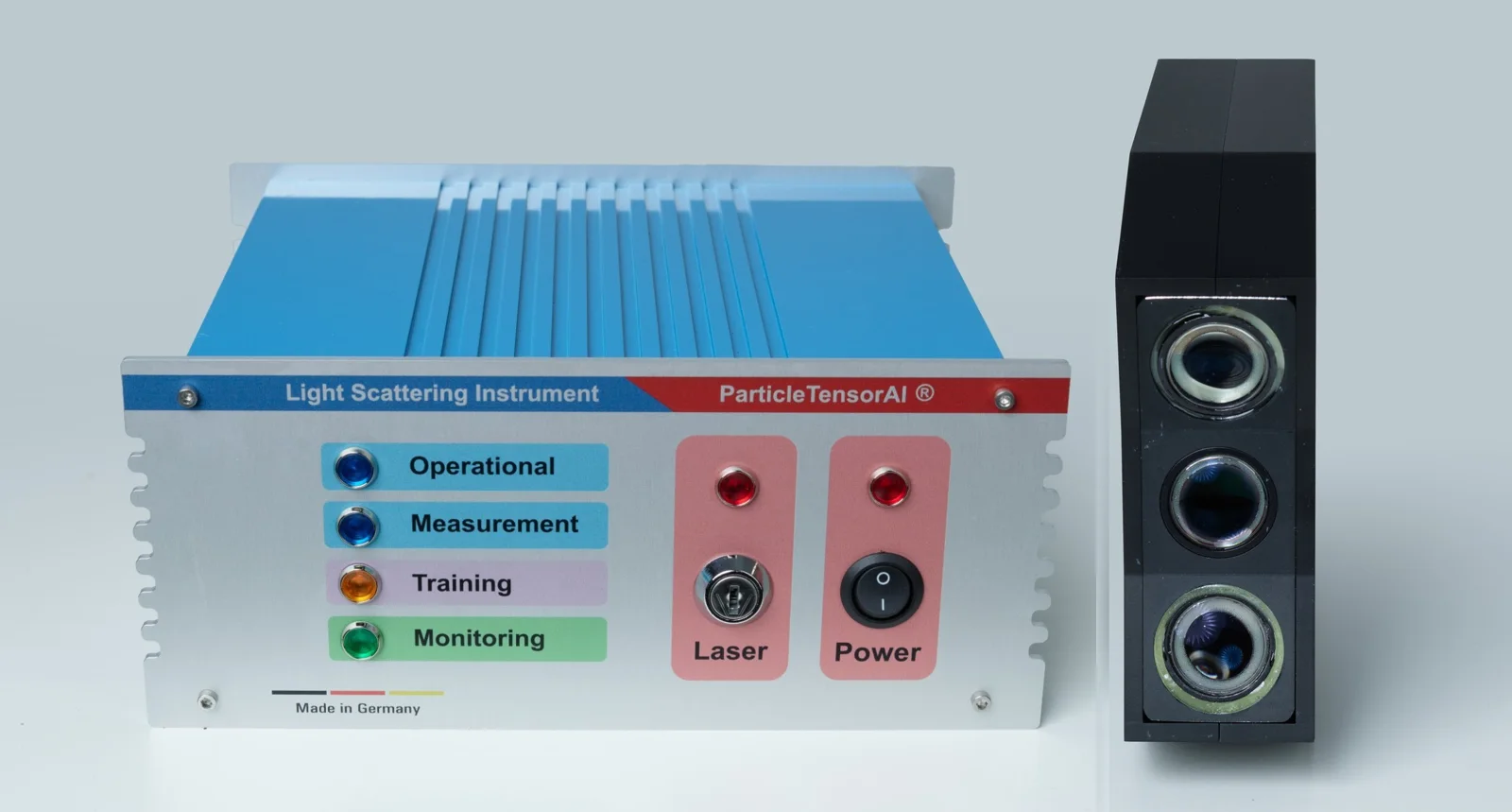

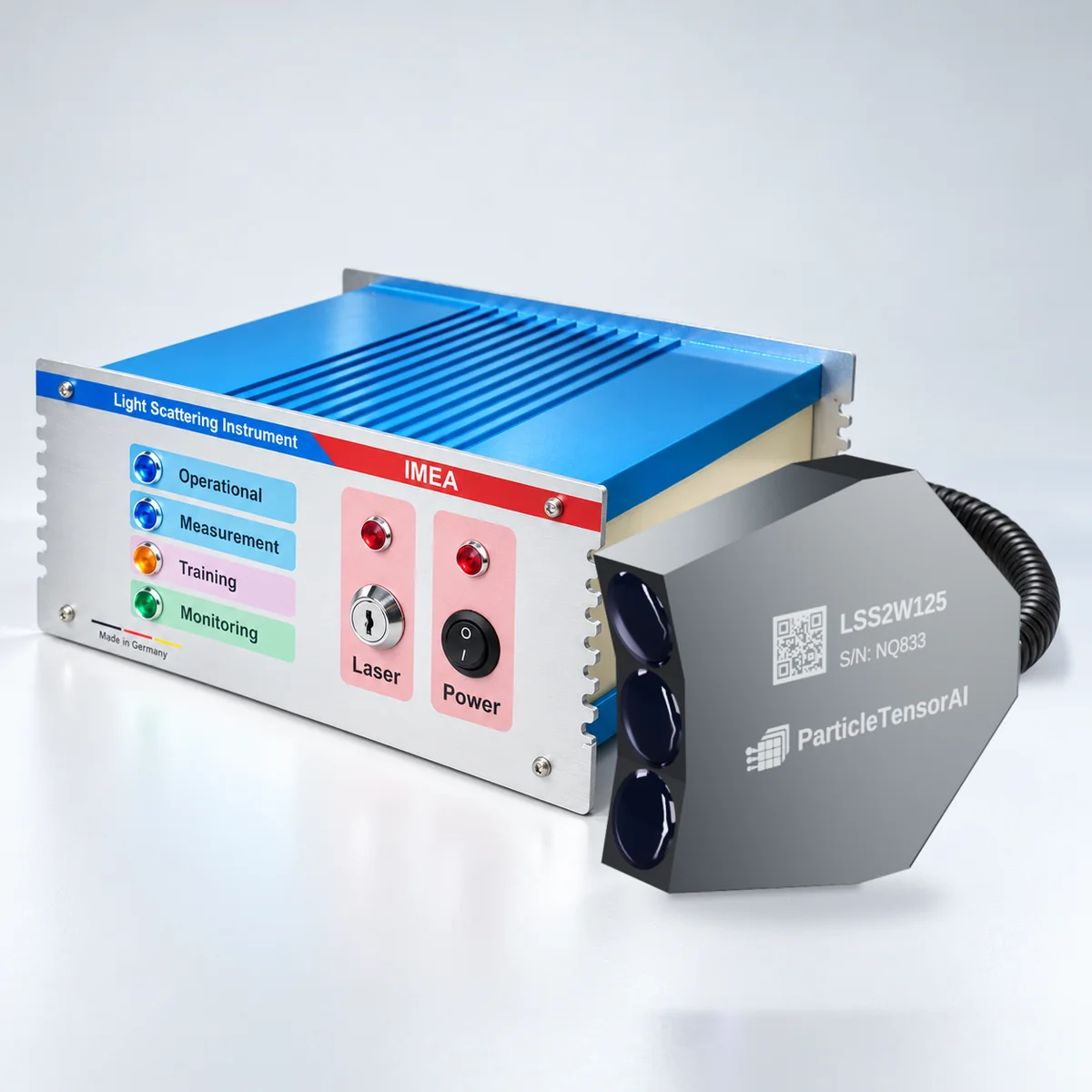

PTA2
ParticleTensorAI®- Detector channels
- 2
- Probe + control unit
- LSS2 + IMEA
- Evaluation method
- AI-based tensor analysis

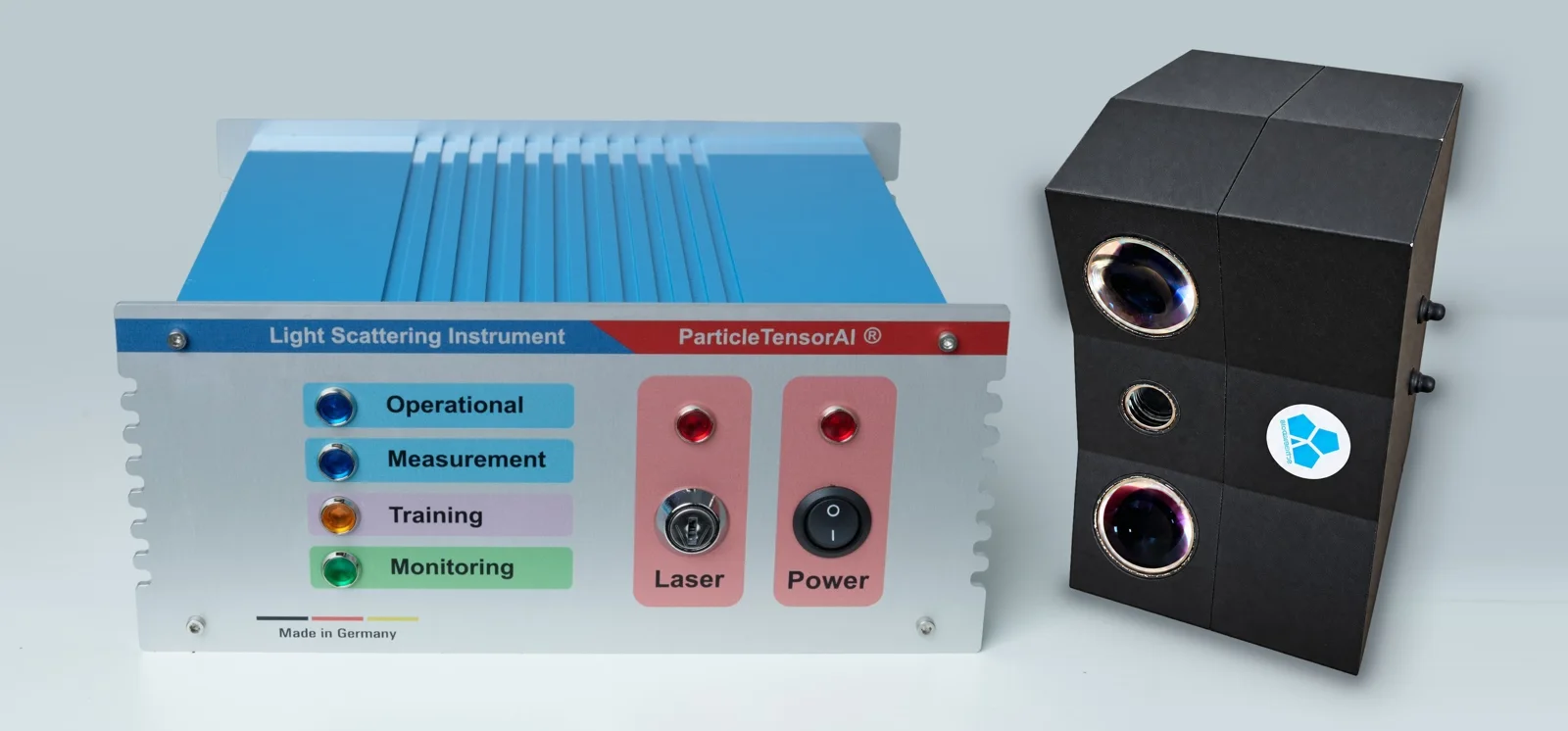

PTA4
ParticleTensorAI®- Detector channels
- 4
- Probe + control unit
- LSS4 + CLEON
- Evaluation method
- AI-based tensor analysis
03 — Measurement Principles
From Light Scattering to Measurement Information

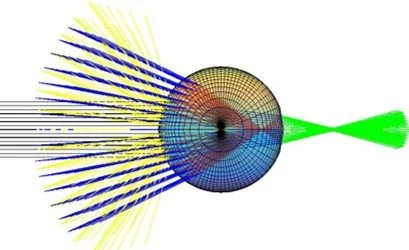

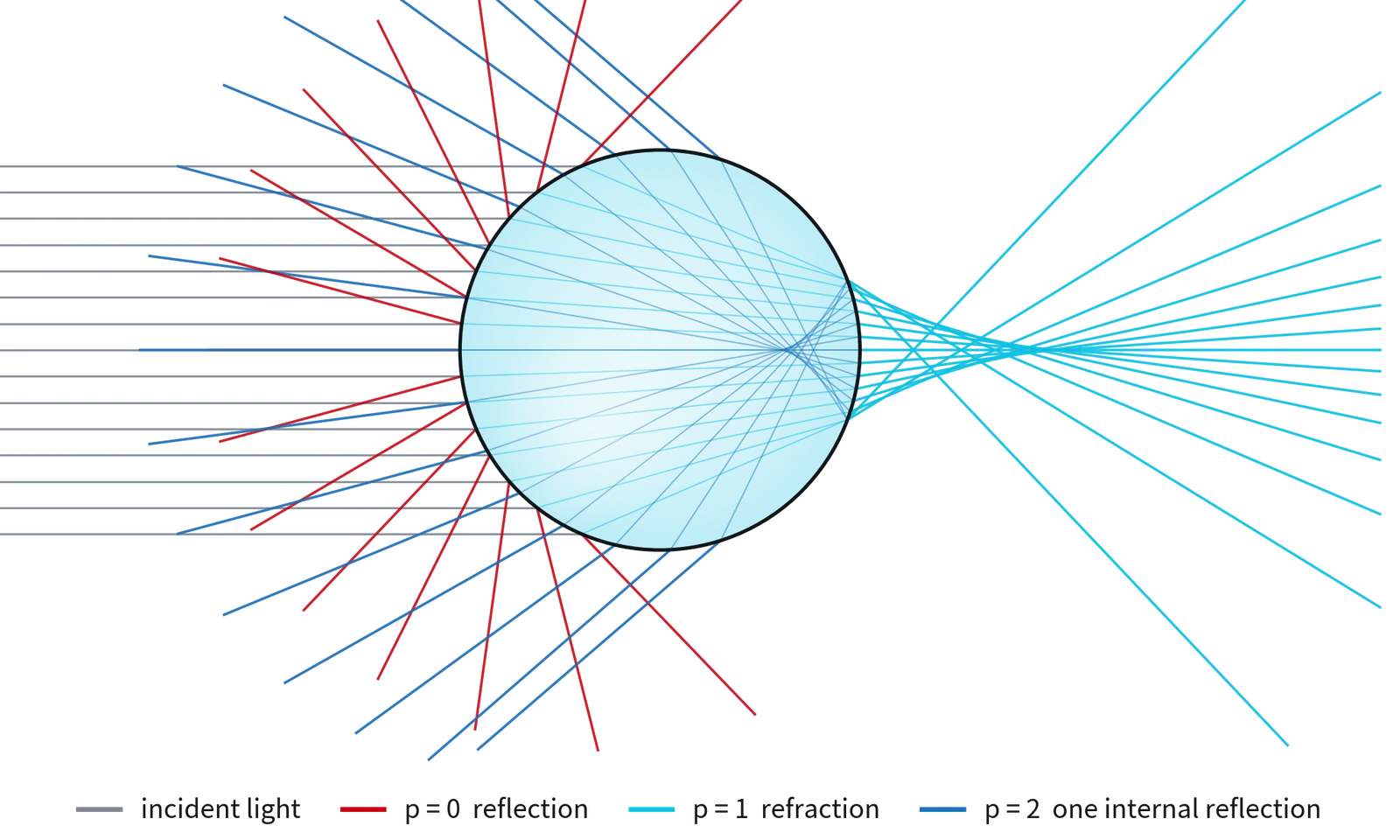

Our technology is based on incoherent light scattering from individual droplets or particles. Optical instruments record the resulting light-scattering signatures, including their temporal structure. AI-based analysis uses this information to determine properties such as droplet size, velocity, composition and concentration, depending on the measurement configuration and model.
| Platform | Input data | Output data |
|---|---|---|
| SprayQuantAI® | Time-resolved signals from individual droplets | Droplet size, velocity and number |
| ParticleTensorAI® | Buffered light-scattering signal sequences of droplets | Tensor light scattering for labeling |
| SprayConeAI® | Images of sprays and spray patterns | Spray cone parameter |
04 — Spray Analysis · Spray Monitoring
AI for Spray Analysis and Spray Monitoring
Our products address two main tasks: AI-based spray analysis and AI-based spray monitoring.
Spray Analysis
In spray analysis, the focus is on determining droplet properties and their distributions to understand and characterize the spray.
Spray Monitoring
In spray monitoring, the user teaches the system a reference spray condition. During operation, the AI compares the measured signals with this reference to detect deviations and help maintain stable process conditions.
05 — Research & Resources
Publications & Events

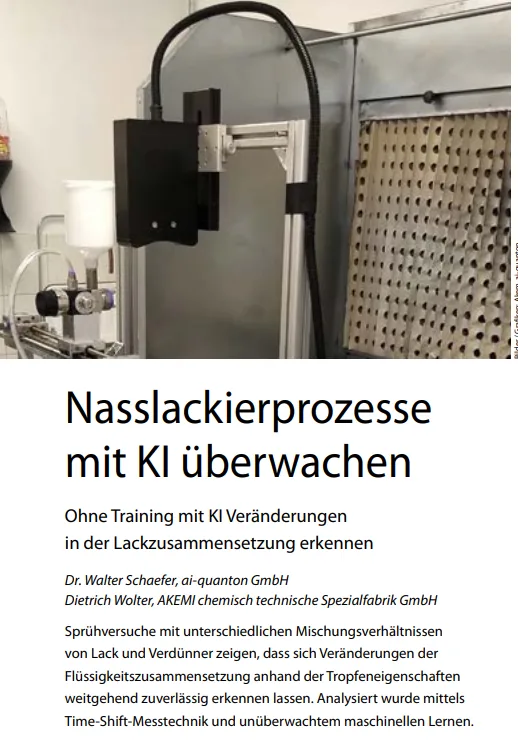

AI-Based Paint Spray Monitoring with Unsupervised Machine Learning
Detecting Changes in Paint Composition Directly in the Spray We recently published a new application of artificial intelligence for paint spray …
SprayConeAI® Trademark Registered in Germany – A New Step Toward Scalable Spray Analysis
SprayConeAI® is now officially registered as a trademark in Germany. I recently received the registration certificate from the German Patent and …
Bits & Pretzels 2026 – Can AI-assisted Spray Analysis Become a Scalable Business?
At Bits & Pretzels, taking place from 28–30 September 2026 in Munich, Germany, we will present our latest developments in AI-assisted spray analysis …
AI-Based Spray Diagnostics with ParticleTensorAI – New KITopen Paper
Our new paper, “AI-assisted monitoring of coal particles within droplets in a coal monoethylene glycol slurry spray,” is now available on KITopen …
Discuss Your Measurement Task
Tell us which droplets, particles or process changes you want to characterize. We can help define the detector configuration, optical setup and evaluation method for your application.
